Our cleanroom ceiling panels are engineered to support essential equipment such as HEPA filters, lighting, and monitoring units while maintaining perfect surface integrity. Panels are available in grid-type (non-walkable) and walkable configurations, fully modular and seamlessly integrated into SECANORM wall systems for enhanced air containment and load-bearing capacity.
Fire Rating
A-2 (EN 13501)
Certifications
ISO 9001, CE
Dimensions
Standard 60×60 cm (other dimensions optional)
System
Economical, hygienic, easy to install / remove on aluminum suspension profiles.
Surface
PVDF-coated galvanized steel (0.8 mm)
Core
PU 40 ± 2 kg/m³
Thickness
50 mm ± 1 mm
Standard Size
1070×2500 mm (custom sizes available)
Sealing
Antibacterial silicone with 4 mm PVC gaskets

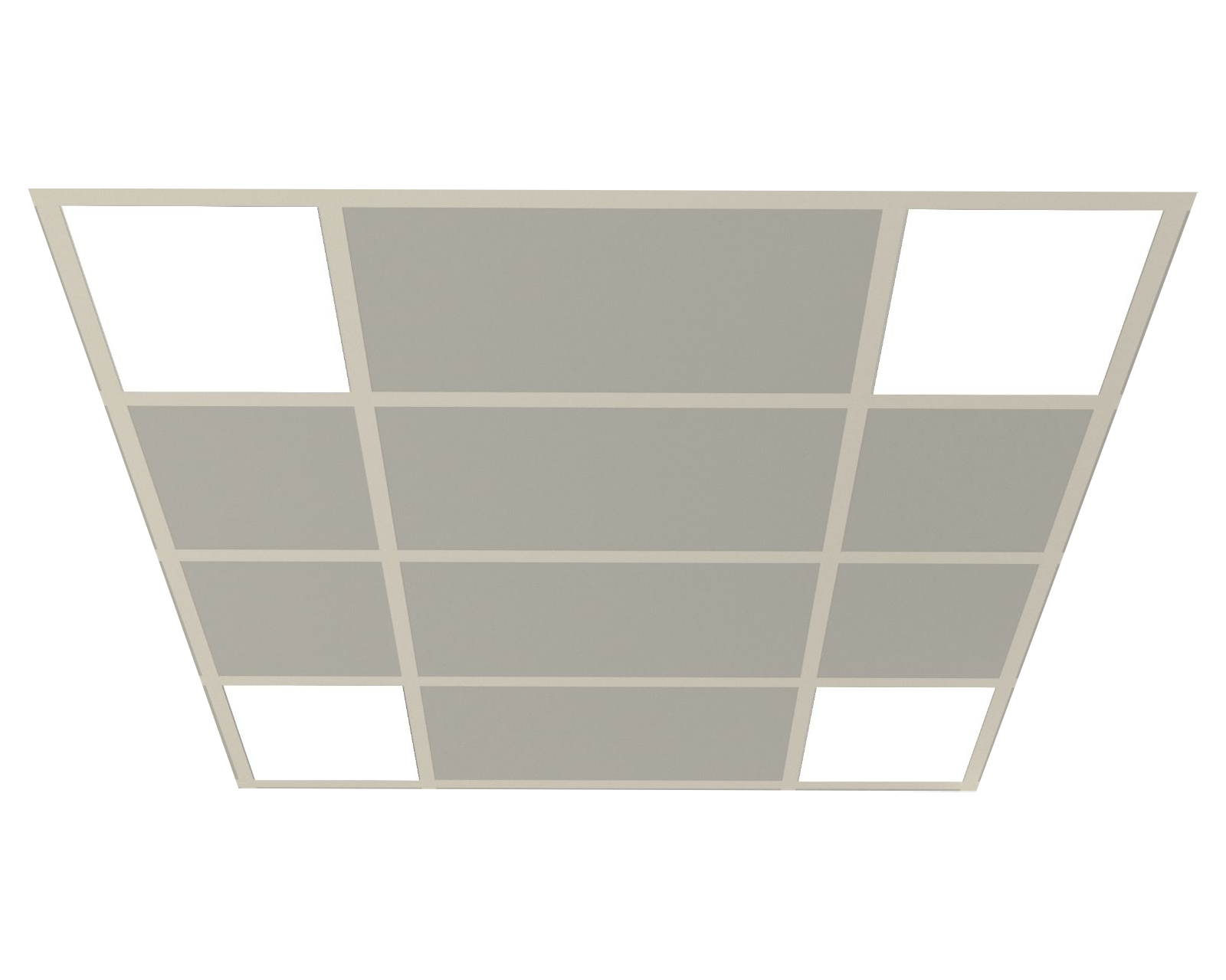

- Type
- Grid Modular (non-walkable)
- Module Size
- 60×60 cm (custom options)
- Profiles
- Aluminum suspension system
- Fire Rating
- A-2 (EN 13501)
- Use Case
- Low load-bearing areas, narrow voids

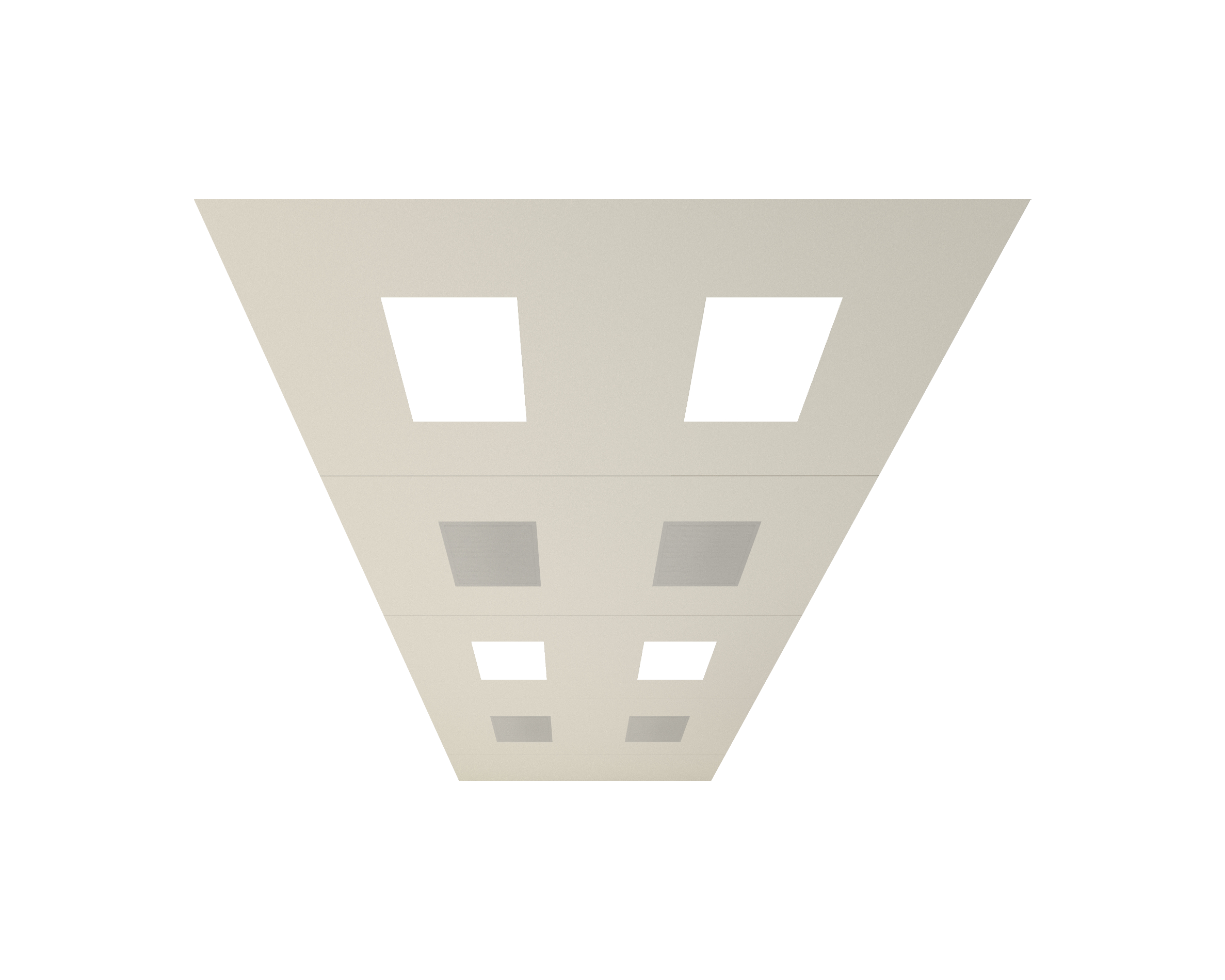

- Type
- Walkable Ceiling Panel
- Surface
- PVDF-coated galvanized steel, 0.8 mm
- Core
- PU 40 ± 2 kg/m³
- Thickness
- 50 mm ± 1 mm
- Size
- 1070×2500 mm (custom available)
- Sealing
- Antibacterial silicone + 4 mm PVC gaskets
- Custom panel sizes and layouts
- Lighting and HEPA cut-out preparation
- Service hatches and access covers
- Additional hanging / support hardware
- Custom RAL finishes (std: RAL 9002)
- Integrated monitoring / utility pass-throughs
- ISO 9001:2015 – Quality Management
- CE – EU Conformity
- EN 13501 – Fire classification (A-2)
- ISO 14644 – Cleanroom compliance
What’s the difference between grid and walkable systems?
Grid modular systems are economical non-walkable ceilings for low load areas; walkable panels provide a safe,
hygienic surface with high load-bearing capacity where personnel access is required.
Can the walkable panels carry HEPA units and lights?
Yes. Panels are designed to accept cut-outs and hanging hardware for HEPA, lighting and utilities while
maintaining air-tightness and structural integrity.
