Cleanroom Wall Panel

Modular Integrity, Maximum Hygiene

  • Non-Flammable (B-s1,d0)
  • Modular System
  • Insulation
  • Chemically Resistant
  • Cleanable

SECANORM wall panels are engineered for optimal performance in cleanroom environments where hygiene, durability, and structural integration are essential. Manufactured with PVDF-coated galvanized steel sheets and an aluminum frame, our panels provide a smooth, joint-free surface that is easy to clean, chemically resistant, and fully compliant with cleanroom standards.

We offer polyurethane as standard core and options such as rockwool and aluminum honeycomb to meet fire safety, acoustic and insulation requirements. Each panel is dimensionally stable, designed for tool-free disassembly and reuse.

  • Surface: PVDF-coated galvanized steel (0.8 mm)
  • Core (std.): PU 40 ± 2 kg/m³  •  Options: Rockwool (150 kg/m³), Aluminum Honeycomb
  • Panel Thickness: 50 mm ± 1 mm
  • Standard Size: 1070 × 3000 mm (custom sizes available)

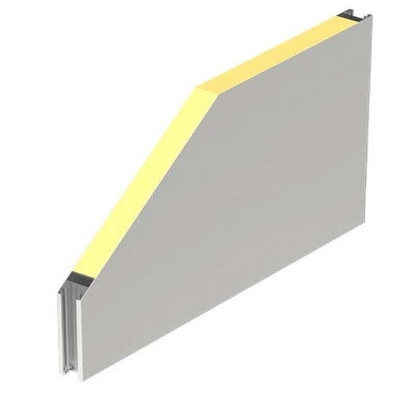

Fireproof PU Filled Cleanroom Wall Panel
Fireproof PU Filled Panel

Surface

PVDF-coated galvanized steel (0.8 mm) with 25 µm paint. Smooth, cleanable and chemical-resistant.

Core Material

PU 40 ± 2 kg/m³ (std.). Options: Rockwool 150 kg/m³, Aluminum Honeycomb.

Sealing

Antibacterial silicone with 4 mm PVC gaskets for airtight, joint-free transitions.

Colors

RAL 9002 standard. Other RAL colors available on request.

Surface
PVDF-coated galvanized steel, 0.8 mm
Paint
25 µm
Panel Thickness
50 mm ± 1 mm
Standard Size
1070 × 3000 mm
Core (std.)
PU 40 ± 2 kg/m³
Sealing
Antibacterial silicone + 4 mm PVC gaskets
Core (options)
Rockwool 150 kg/m³; Aluminum Honeycomb
Metals
Steel | PVDF; Stainless Steel AISI 304/316 (optional)
Colors
RAL 9002 standard; other RAL colors optional
Compliance
ISO 14644 / GMP
Fire Rating
EN 13501 B-s1,d0
Quality
ISO 9001:2015
  • Custom panel sizes and cut-outs
  • Hidden or exposed aluminum profiles
  • Integrated cable/utility channels
  • Stainless steel surface (AISI 304 / 316)
  • Special RAL colors & textures
  • Matching doors, glass panels and ceiling system
Wall Joint
4 mm silicone gap for clean, flexible joints.
Joint Profile
Aluminum joint profile with silicone gasket for airtightness.
Floor Profile
Compatible floor profile for seamless wall-to-floor transition.

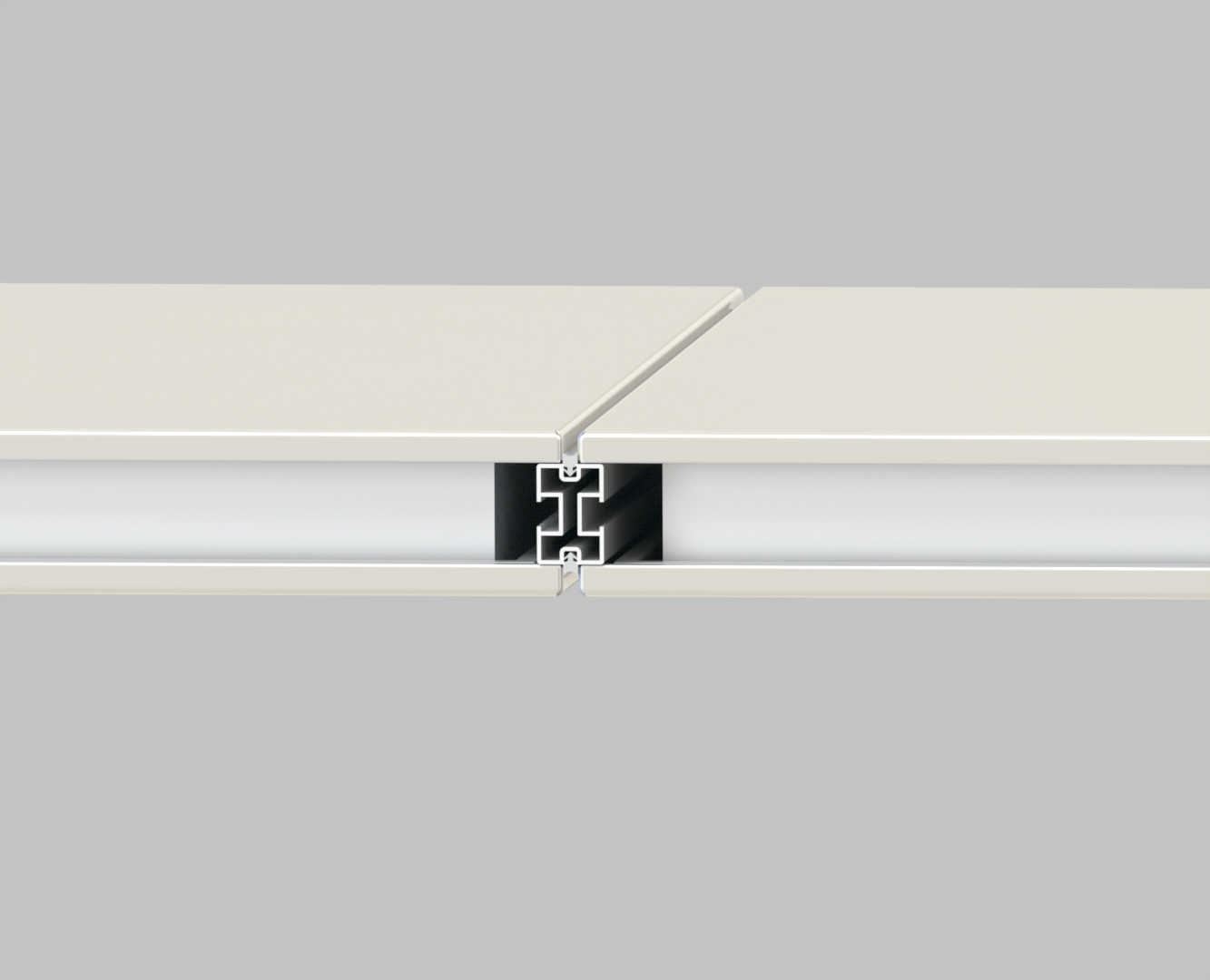

Wall Joint – 4 mm Silicone Gap
Wall Joint – 4 mm Silicone Gap

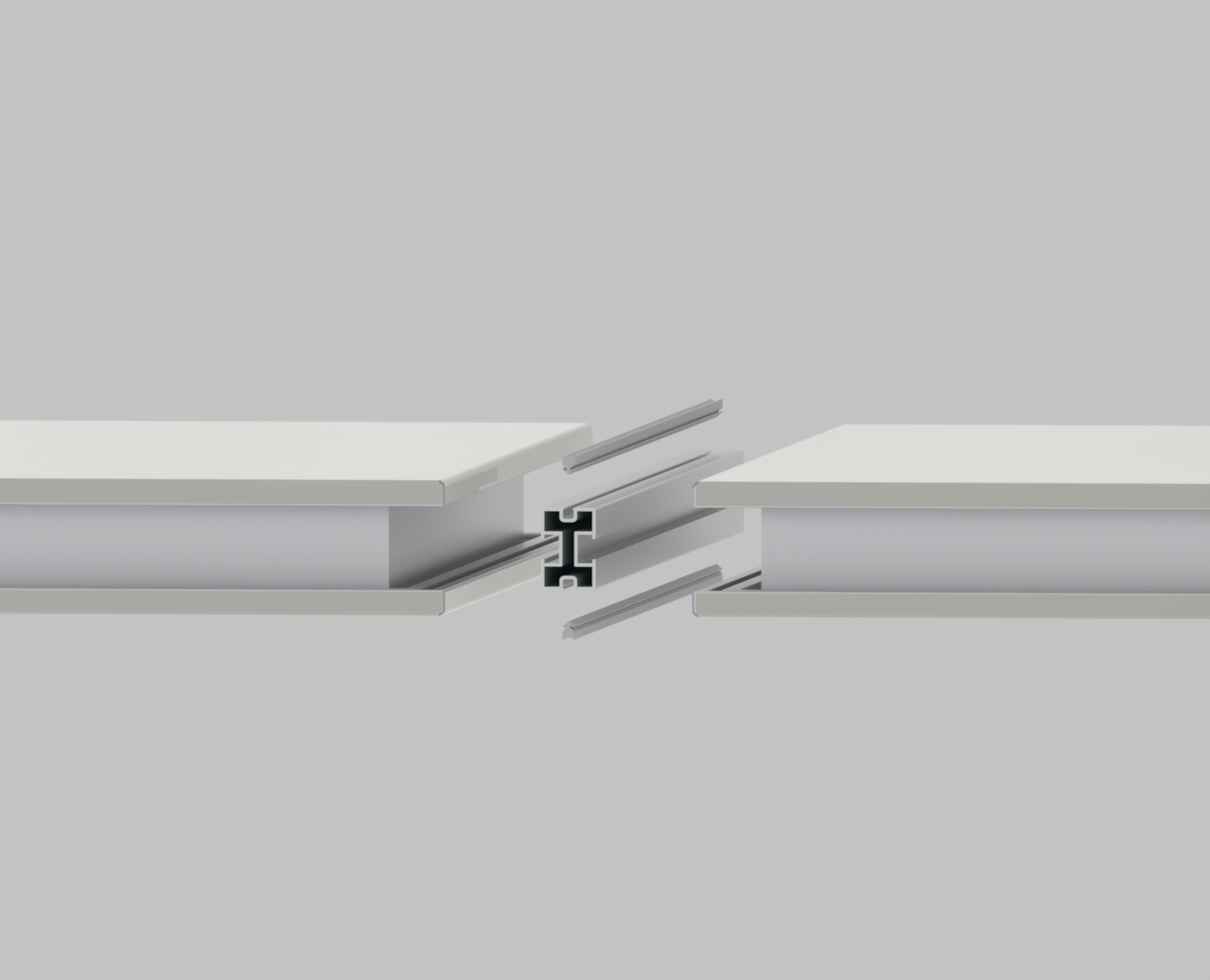

Wall Joint Profile & Silicone Gasket
Wall Joint Profile & Silicone Gasket

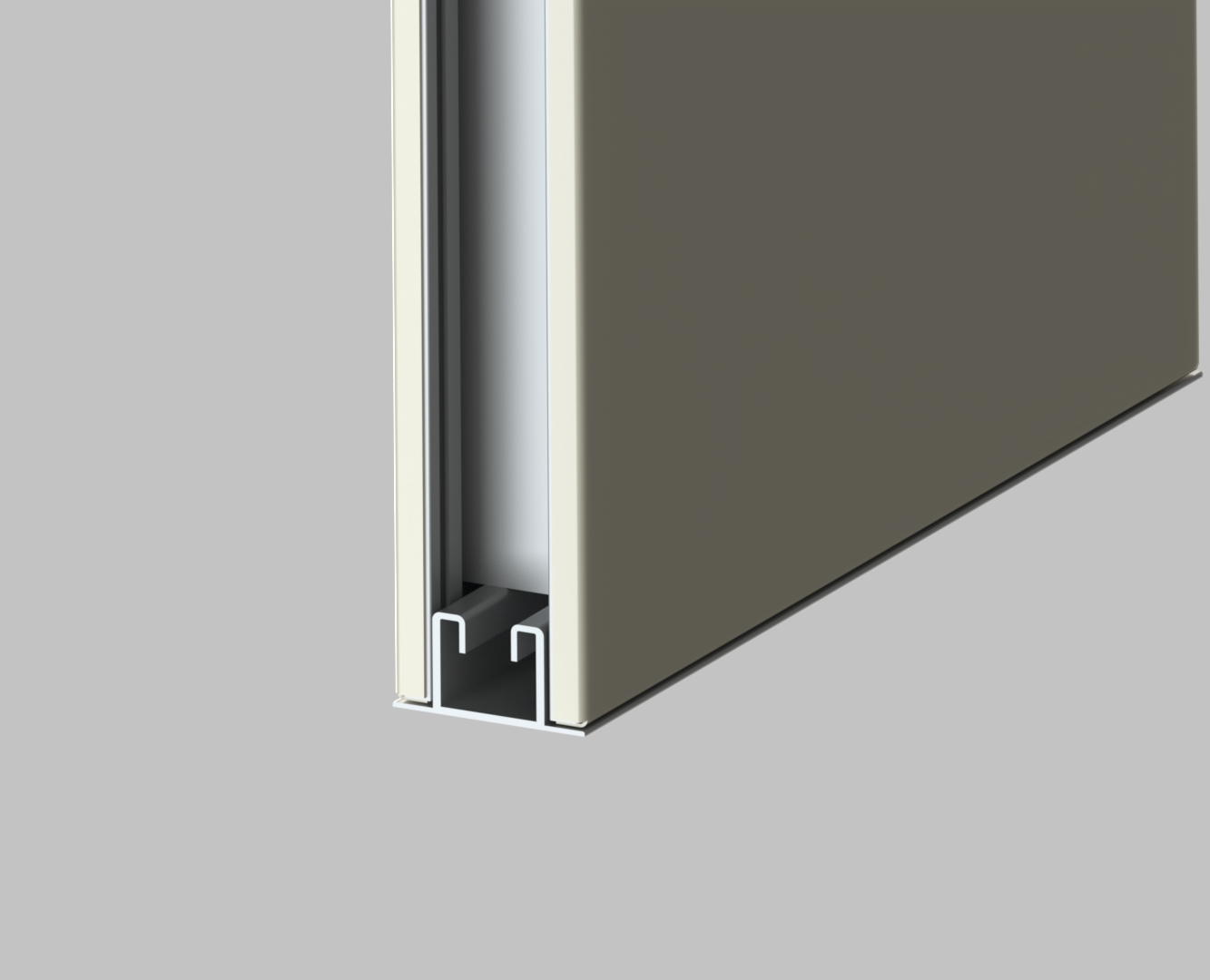

Floor Profile
Floor Profile
  • ISO 9001:2015 – Quality Management
  • CE – EU Conformity
  • EN 13501 – Fire classification (B-s1,d0)
  • ISO 14644 – Cleanroom compliance
Can I request custom panel dimensions?
Yes. In addition to the 1070×3000 mm standard, we manufacture project-specific sizes.
Do you provide installation and commissioning?
Turnkey delivery is available including on-site installation, validation and documentation.
;
